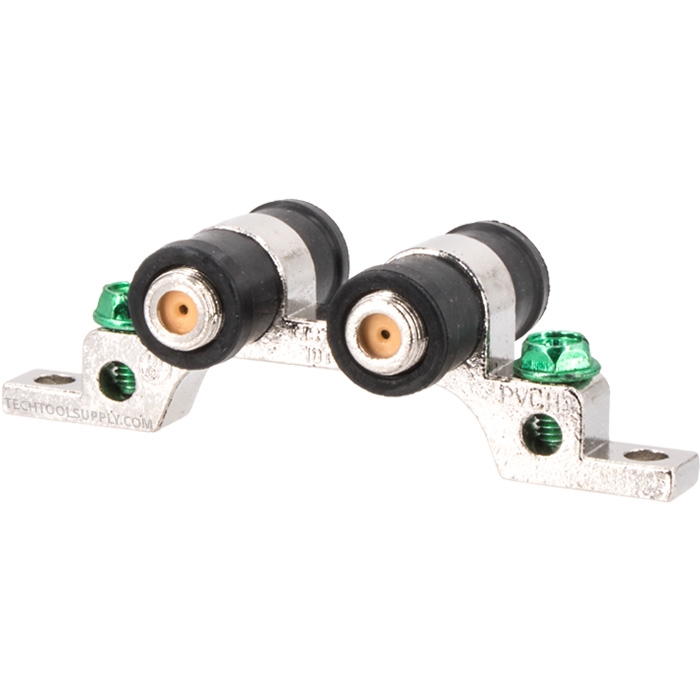

3GHz Ground Block SCTE Compliant - 2 Port
3GHz Ground Block SCTE Compliant - 2 Port


TTS PRICE: $4.39

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: PRF-GRDBLK2R1-05
QUANTITY:

PRODUCT DESCRIPTION


The internal components of this single ground blocks are much different from a standard frequency VHF/UHF ground block. The center coax conductor indexes into a close-tolerance tube that is resilient (spring) brass and is gold plated. The close center-tube tolerance assures a tight connection, the gold plating assures a good electrical connection and the overall performance is greatly improved over standard designs.

Features:
  • DirecTV approved
  • SCTE Outdoor Compliant bonding block
  • Rated for 0 MHz to 3 GHz
  • One inch spacing between centers of ports
  • UV resistant rubber weather seals provided
  • UL approved
  • Internal components designed for high frequency and low loss
  • Gold plated center conductor assures good connections
  • Resilient internal metals for dependable repeated insertion connections
  • Minimal insertion and return loss numbers
  • Two mounting screws are provided with each block

    • Specifications:
  • Quantity: 1
  • Ports: 2
  • Insertion Loss: < 0.2 dB 2 MHz~3GHz
  • Return Loss: ≥20 dB 2MHz~3GHz
  • Shielding Effectiveness: >100 dB
  • Bonding Effectiveness: <50 milliΩ
  • Operating Temperature: -40°C~+60°C
    •
