10dB Attenuator 5Mhz-3Ghz

Home > Categories > RF Distribution > Attenuators >

TTS PRICE: $1.19

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: FAM-10

QUANTITY:

PRODUCT DESCRIPTION

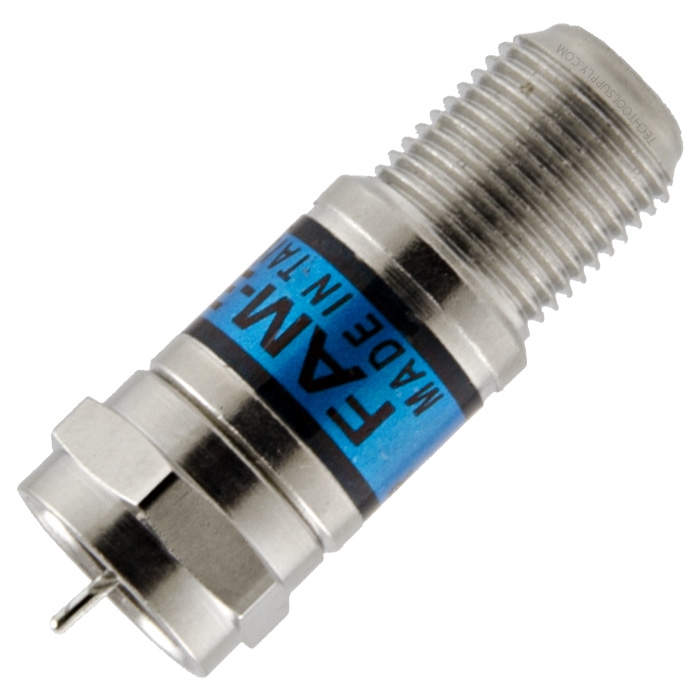

Holland Electronics Attenuator series has been developed to meet the requirements and improve performance of CATV, Off-Air, SMATV, and other RF distribution systems. The FAM-10 In-line attenuator can be inserted in coaxial cable feeds to reduce signal levels. Combinations of attenuators may be used together to create the exact signal loss needed.

Specifications:

Frequency Range: 5MHz-3GHz

High Accuracy (5%)

Attenuator Value: 10dB

Flatness: .8

Return Loss (.5 GHz / 1 GHz / 2 GHz): 25 / 22 / 18 (dB)

Body Material: Brass - C3602

Plating: 4um Nickel

Center Pin: 8mm Steel

Average Customer Review: Average Customer Review: 5 of 5

5 of 5 Total Reviews: 1 WRITE A REVIEW

So far, this Product Review was helpful to 1 TTS Customers.

Better again!	January 29, 2019
Reviewer: Tim Custer from Warren, PA United States

These had been good attenuators but had slipped a bit in quality the last year or so. They seem redesigned and are now back on par with the older ones.
