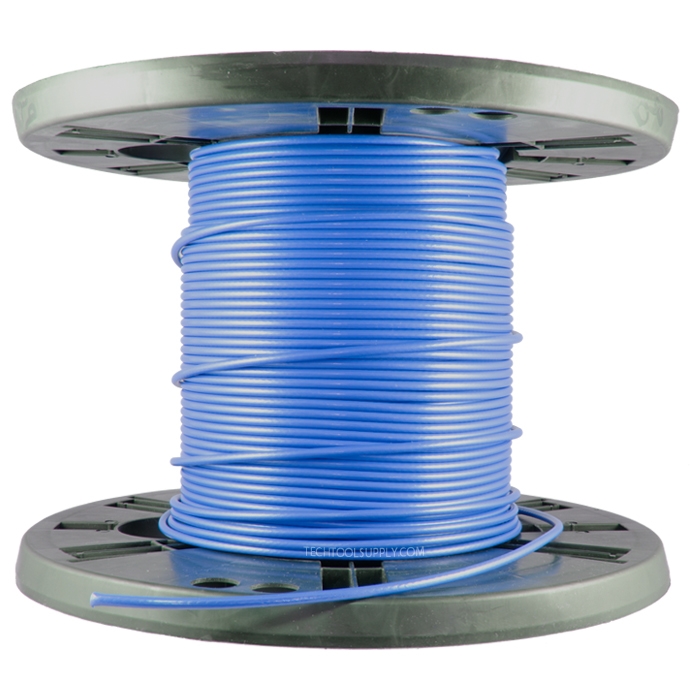

1000ft Spool Mini RG59/U Coax - Blue

1000ft Spool Mini RG59/U Coax - Blue


TTS PRICE: $363.99

STATUS: ON ORDER


Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-1855940-BL
QUANTITY:

PRODUCT DESCRIPTION


Holland Electronics is proud to offer YR940 micro-coaxial cable. The YR940 micro cable is a precision 75 Ohm video cable with a 23 AWG solid copper center conductor, bonded foil, and a 95% tinned copper braid (enabling its SDI rating). The YR940 Series, when matched with Holland's 1855 connectors provide the perfect solution for your A/V applications.

Features:
  • Extremely Flexible
  • Swept Tested to 3GHz
  • Guaranteed Return Loss Specs
  • Gas-injected Foam HDPE Insulation
  • Overall PVC Jacket
  • Made in the U.S.A.

    • Specifications:
  • Length: 1000 ft (304.8 meters)
  • Color: Blue
  • Conductor Material and Diameter: 23 awg Solid Copper .023" BC 20.1Ω/M (65.9Ω/km)
  • Impedance: 75
  • UL NEC: CMR
  • C(UL) CEC: CMG FT4
  • Standard Unit Weight: 4.5lbs (2.0kg)
  • Nom. Core OD: .102in (2.59mm)
  • Shielding Materials Nom. DCR: Duobond II +95% TC Braid 7.6Ω/M (24.9Ω/km)
  • Nom. OD: .159in (4.03mm)
  • Nom. Vel.of Prop: 83%
  • Nominal Capacitance: 16.3 pF/Ft. (53.5 pF/m)

    • PERFORMANCE
    Frequency (MHz) dB Loss @ 100'
    5 .9
    42 2.3
    55 2.6
    65 2.8
    70 3.0
    211 4.7
    216 4.8
    240 5.1
    270 5.4
